Cambridge Audio Azur 851A

1 699

Cambridge Audio Azur 851A

UGS : ND Catégories : , Étiquettes : , Marque:

Description

Cambridge Audio Azur 851A : Integrated Class XD Amplifier

The 851 possesses incredible power, finesse and astonishingly low distortion. In its design we assessed every component for sonic excellence and revised, reviewed and optimised the signal path for minimal distortion. Thousands of hours were spent testing and tweaking, the result is an amplifier we’re incredibly proud of.

SOUND QUALITY

Nothing prepares you for the sound quality of our 851A. Rated at 120 Watts per channel and built with a fastidious attention to detail, it presents your music with astounding depth and incredible clarity. The precision volume control provides remarkable stereo separation, while the overall effect is to give your music collection a new lease of life.

CONNECTIVITY

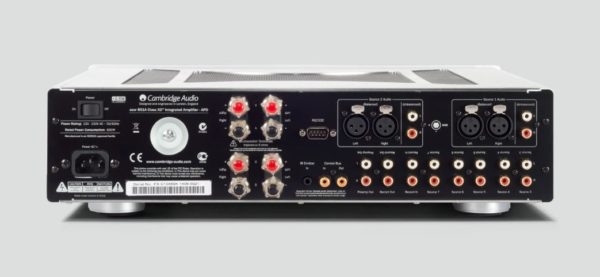

We built the 851A without sonic compromise, and that’s true of the connectivity too. Nine RCA inputs cater for regular analogue inputs, while for high end components there are two sets of balanced XLR inputs. We’ve added a pre-out for connecting to a subwoofer or power amp, while two sets of speaker terminals allow for bi-wiring or running additional speakers in a second location. Finally, Control Bus inputs allow the linking of compatible Cambridge Audio products for easy control from one remote.

CLASS XD + TWO TRANSFORMERS

Rather than use Class A or Class AB amplifier designs, we developed a novel and unique new design called Class XD, which combines the sonic purity of Class A and the efficiency of Class AB for the best possible result. F

The primary toroidal transformer provides unrestricted power to the dual mono amplification blocks. It’s a true audiophile transformer that will operate without distortion and with no buzz, interference or hum. While a second, smaller toroidal transformer takes care of pre-amplification processes.

Specifications : Cambridge Audio Azur 851A

POWER OUTPUT

120W RMS into 8 Ohms 200W RMS into 4 Ohms

THD (UNWEIGHTED)

< 0.001% 1 kHz at 80% of rated power 0.01% 20 Hz – 20 kHz at 80% of rated power

AUDIO INPUTS

2 x balanced XLR, 8 x RCA inputs

AUDIO OUTPUTS

Preamp output Record output

FREQUENCY RESPONSE

10 Hz – 50 kHz +/- 1 dB

S/N RATIO (REF 1W)

> 93 dB (ref 1W/8 Ohm)

INPUT IMPEDANCE

Inputs 1 and 2 (balanced) 20 kOhm, Inputs 1-7 unbalanced 20 kOhm Rec Input 20 kOhm

POWER AMP DAMPING FACTOR

> 110 at 1 kHz

MAX. POWER CONSUMPTION

800W

MIN. POWER CONSUMPTION

Active (no signal) 70W

STANDBY POWER CONSUMPTION

Standby <0.5W

TONE CONTROL

Shelving type Max bass boost/cut +/- 10 dB at 10 Hz Max treble boost/cut +/- 7.5 dB at 20 kHz

COLOUR

Silver or black

DIMENSIONS (WXHXD)

430 x 115 x 385mm (16.9 x 4.5 x 15.2”)

WEIGHT

15.0Kg (33lbs)

IN THE BOX

Azur 851A Integrated Amplifier, Power Cable, 3 x AAA Batteries, Remote Control



Informations complémentaires

Color

Black, Silver
