Parasound New Classic 2125 v.2

Description

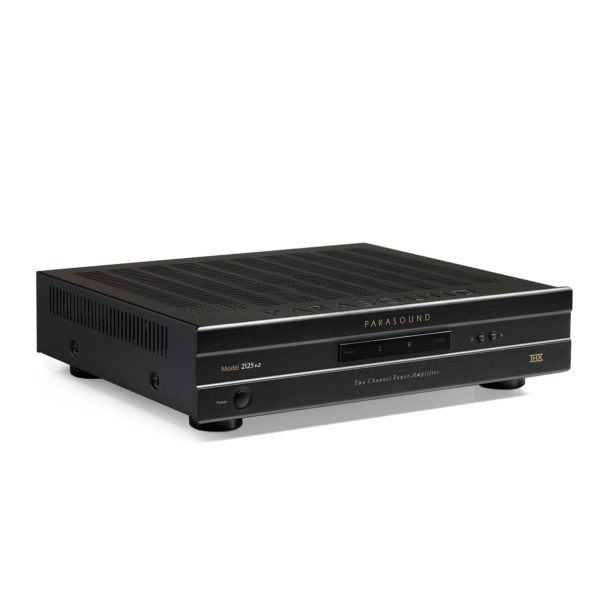

Parasound New Classic 2125 v.2 : Stereo Power Amplifier THX

  • THX Ultra2 certified
  • 150 watts x 2 into 8 Ω (all channels driven)
  • 225 watts x 2 into 4 Ω or 2 Ω (all channels driven)
  • 400 watts x 1 bridged into 8 Ω or 4 Ω
  • 35 amps peak current per channel
  • 2 Ohm stable operation with load selector switch
  • Two pairs of speaker outputs with front panel A/B buttons
  • Rear-mounted lockout switch disables front A/B buttons
  • High pass filter, switchable for 20Hz or 40Hz
  • Automatic on/off by DC trigger with looping output
  • Automatic on/off by audio signal with 2 sensitivity settings
  • Fully discrete circuitry with high current toroid transformer
  • Bridging switch for stereo or mono operation
  • Efficient, low heat design
  • DC Servo and relay protection circuits
  • Rear-mounted left and right gain controls
  • Standby, channel status and high temperature indicators
  • Gold-plated RCA input jacks
  • Heavy duty 24k gold-plated 5-way speaker terminals
  • 115/230v selector on rear panel

Specifications :   Parasound New Classic 2125 v.2

All Channels Driven
150 watts x 2, 8Ω
225 watts x 2, 4Ω
225 watts x 2, 2Ω (Load switch set to 2-3Ω)

Bridged Mono
400 watts x 1, 8Ω
400 watts x 1, 4Ω (Load switch set to 2-3Ω)

Current Capacity
35 amps peak per channel

Frequency Response
20 Hz – 50 kHz, +0/-3 dB, 1 watt
Dynamic Headroom – 1.3 dB

Total Harmonic Distortion
0.25% at full rated output
0.015% at average listening levels

IM Distortion – 0.05 %
Transient IM Distortion – Not measurable

S/N Ratio
114 dB at rated output, IHF A-weighted
106 dB at rated output, unweighted
93 dB at 2.828 V output, IHF A-weighted
84 dB at 2.828 V output, unweighted

Input Impedance – 33 k Ω

Input Sensitivity
1 V in for 28.28 V out, THX standard

Inter-Channel Crosstalk
85 dB @1 kHz, 73 dB @10 kHz, 67 dB @ 20kHz
Damping Factor – Over 150 at 20Hz
12V Trigger Turn On – DC 9 – 12V, 15 mA

Audio Turn On
Quieter: 1 mV
Louder: 6 mV

AC Power Requirement
110 – 120 V / 220 -240 V, 50 – 60 Hz
0.5 watts standby
32 watts Idle (no audio)
550 watts full output

Dimensions
171/4″ Wide
16″ Deep, with cables connected
4.25″ High with feet, 3.5″ panel only (2U)
(437 x 406 x 107mm, 88.2 mm panel only)

Net Weight – 27 lbs (12.3 kg)
