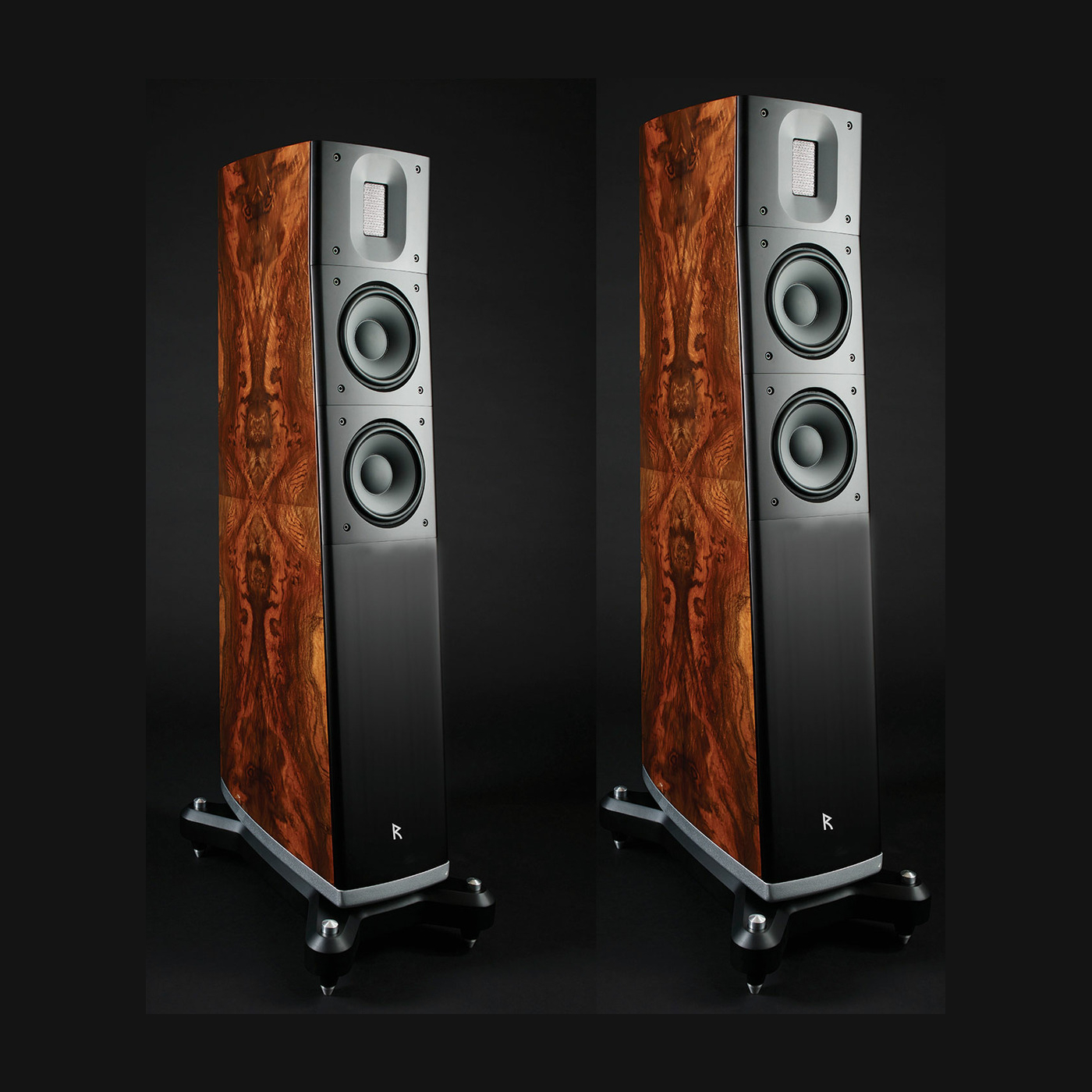

Raidho TD2.2

39 500 € – 43 500 €

Raidho TD2.2

Artikelnummer: N/B Categorieën: , Tag: Merk:

Beschrijving

Raidho TD2.2 :  Speaker

Very coherent sound from top to bottom

When you listen to this speaker you immediate think: How could you possible what anything more than this? And you would be right. But then please do not listen to the models above this.

A Raidho special among floorstanding loudspeakers is the use of 2,5 way construction. This guarantees a very coherent sound from top to bottom as both drive units puts out bass, but only the upper does midrange.

Decoupling of the speakers is integrated into the feet. So, there is no need for spikes to achieve the best result, because this is actually done with ceramic balls, on which the speakers rest on.

Raidho Series TD
‍Drive Unit

This is truly a unique and revolutionary drive unit! 100% developed and build inhouse by Raidho. The goals was simple: no coloration and outstanding dynamic capabilities.
‍
The motor comprises of a very strong magnet (N52 Neodymium) with an unseen even magnet field, coupled with an underhung titanium voice coil. This arrangement gives the drive unit the most powerful underhung magnet system in the world. The benetfit from an underhung voicie coil over the traditional overhung, is that it is much more linear and better dynamic capabilities. The result is perfect transient response with no measurable distortion.

The Legendary Raidho Ribbon Tweeter

Our proprietary, trademark ribbon tweeter is a unique design. It is completely designed and build by hand in-house in Denmark. To be exact, it is a Planar Magnetic Tweeter due to the tracks in the foil. The foil is 11 micron thick, which means it is 50 times less mass in comparison to a conventional dome tweeter. This is because there is no voice coil and the extreme low weight of the foil (20 milligram). The result is virtually no resonances or distortion, and the breakup point is at an incredible 82 KHz! What you hear is amazing clear and natural sound. All the detail in the world, but no fatigue, no distortion, and no coloration!

‍

Specifications :

Topology
2,5 way
Bass Loading
Bass reflex Port in rear, Impulse optimized – Conform
Drivers

1 x Raidho TD Ribbon Tweeter

1 x 6,5” Raidho Tantalum

Diamond midbass

1 x 6.5” Raidho Tantalum Diamond bass

Crossover Point
400Hz and 2.4 kHz stepped slope
Frequency Range
32Hz – 50 kHz +/-3 dB
Sensitivity
88dB 2,83 V/m
Nominal Impedance
2,83 V/m
Power Requirement
50 -150 Watts
Finish
Piano Black, Walnut burl veneer or any colour to order
Dimensions WxHxD, mm
315x1150x505 including feet
Enclosure WxD, mm
200 x 505
Weight, kg
45

Extra informatie

Color

Black, Walnut
