Description

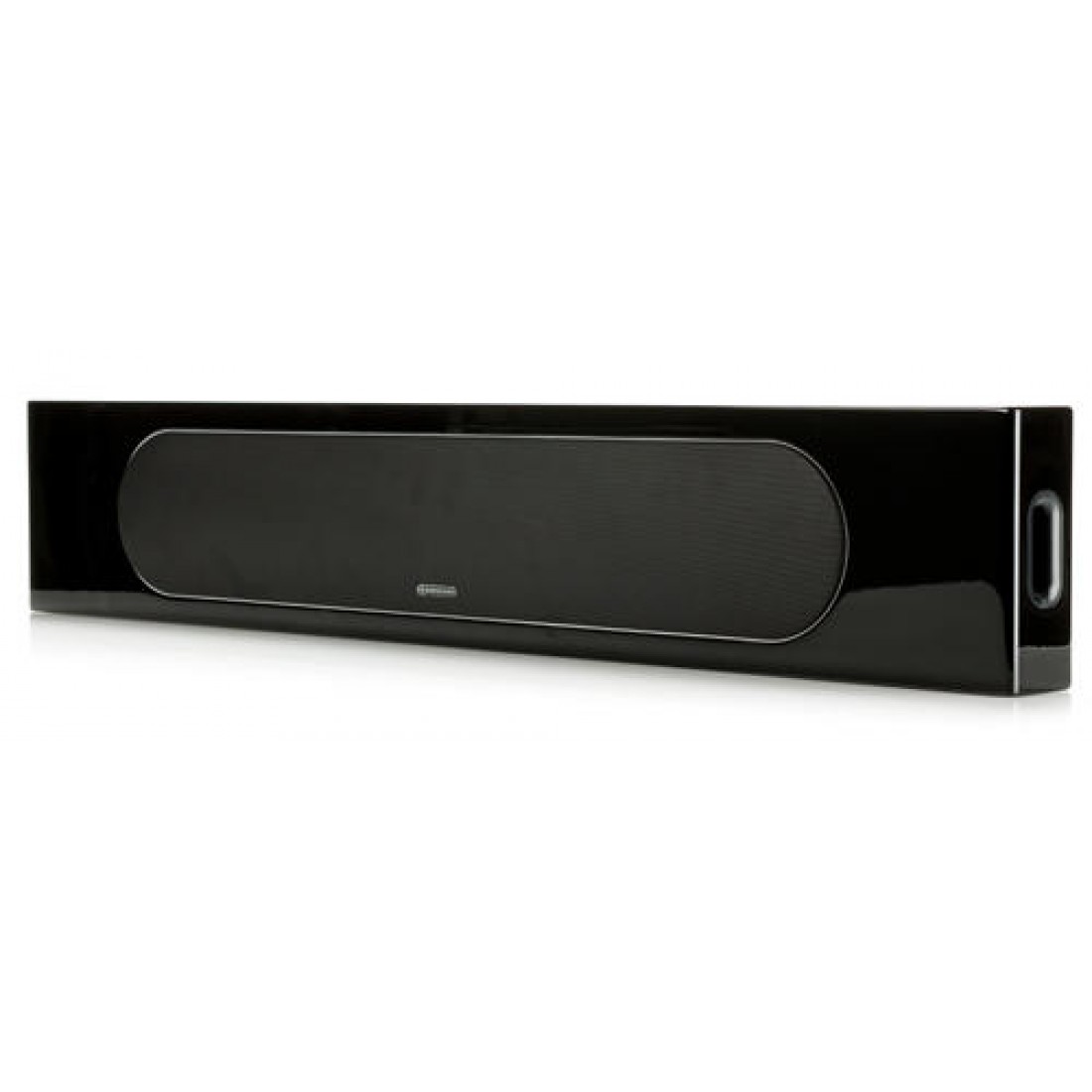

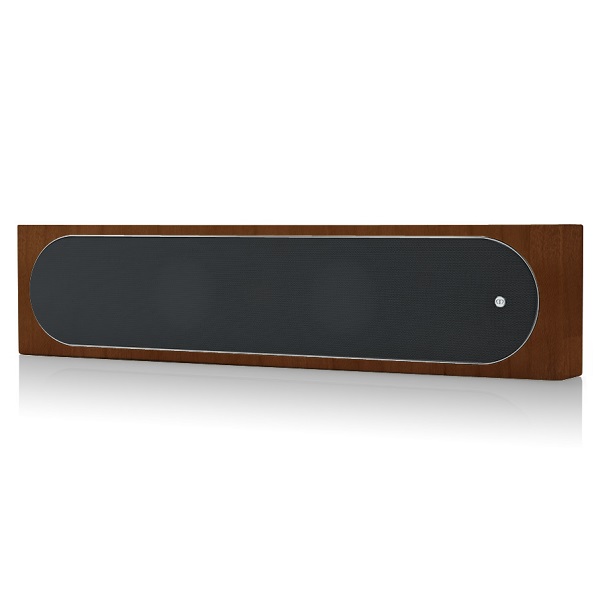

Monitor Audio Radius 225 : Center Speaker
At just 65 mm in depth, the 225 is the perfect match with today’s ultra-thin displays. Use it as a centre channel or main speaker: its acoustic design of twin 4″ C-CAM mid/bass drivers astride a 1″ C-CAM tweeter delivers superb accuracy from horizontal and vertical positions.
Specifications : Monitor Audio Radius 225
Frequency Response
80 Hz — 35 kHz
Sensitivity (1W@1M)
87 dB
Nominal Impedance
6 ohms
Power Handling (RMS)
100 W
System Power Handling (RMS)
150 W
Recommended Amplifier Requirements
40 — 150 W
Maximum SPL
107 dBa
Bass Alignment
Bass reflex – Front ported
Drive Unit Complement
2 x 4″ (100 mm) C-CAM cone bass/mid driver
1 x 1″ (25 mm) C-CAM Gold Dome tweeter
Cabinet Dimensions (H x W x D)
140 x 610 x 67 mm (51/2 x 24 x 25/8“)
Cabinet Dimensions (Including Grille and Terminals (H x W x D))
140 x 610 x 77 mm (51/2 x 24 x 31/16“)
Cabinet Dimensions (Including Grille and Bracket (H x W x D))
140 x 610 x 84 mm (51/2 x 24 x 35/16“)
Pre-Construction Bracket
Dedicated bracket included
Weight
4.2 kg (9 lb 4 oz)
Sold As
Single Unit
